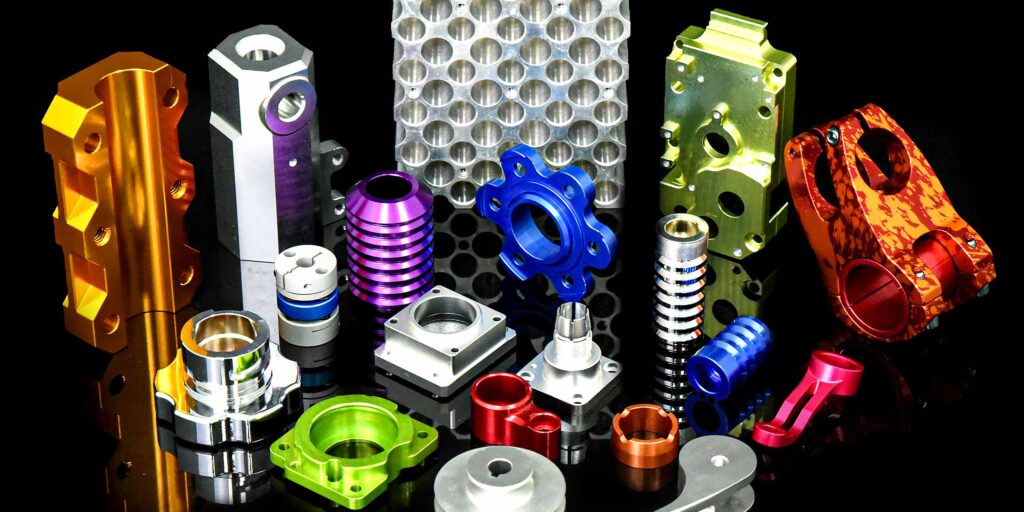

Anodizing parts

Comparing Type II and Type III Anodizing

Type II and Type III anodizing are both electrochemical processes used to create protective oxide coatings on the surface of metals, especially aluminum and its alloys. These coatings provide improved corrosion resistance, surface hardness, and can also serve as a base for coloring or other treatments. Let’s compare Type II and Type III anodizing:

Type II Anodizing (Conventional Anodizing):

  1. Process: Type II anodizing is a relatively simple and common anodizing process. It involves immersing the metal (usually aluminum) in an electrolytic solution and applying a direct current to create an oxide layer on the surface.
  2. Coating Thickness: Type II anodizing typically results in a relatively thin oxide layer, ranging from 0.0002 to 0.001 inches (5 to 25 micrometers).
  3. Properties: The resulting coating offers moderate corrosion resistance, increased surface hardness, and improved dye absorption. It can also provide aesthetic enhancements through coloration.
  4. Uses: Type II anodizing is often used for decorative purposes, as well as providing mild protection against corrosion and wear. It’s commonly found in architectural applications, consumer electronics, and other products where aesthetics are important.
  5. Electrical Insulation: The oxide layer formed in Type II anodizing is relatively porous and less electrically insulating compared to Type III anodizing.

Type III Anodizing (Hardcoat Anodizing or Sulfuric Acid Anodizing):

  1. Process: Type III anodizing is an advanced process that involves using a more concentrated sulfuric acid electrolytic solution and applying higher voltages to achieve a thicker and harder oxide layer.
  2. Coating Thickness: Type III anodizing results in a significantly thicker oxide layer, typically ranging from 0.001 to 0.004 inches (25 to 100 micrometers) or even more.
  3. Properties: The thicker oxide layer in Type III anodizing provides exceptional hardness, wear resistance, and superior corrosion protection compared to Type II anodizing. It is also a great insulator and can withstand higher temperatures.
  4. Uses: Type III anodizing is used in applications where extreme wear resistance and durability are required. It’s commonly employed for aerospace, military, and industrial components subjected to harsh environments, such as aircraft parts, firearms, and heavy machinery.
  5. Electrical Insulation: The thicker and denser oxide layer formed in Type III anodizing provides superior electrical insulation properties, making it suitable for applications where electrical isolation is crucial.

In summary, while both Type II and Type III anodizing involve creating oxide coatings on metal surfaces, they differ significantly in terms of coating thickness, properties, and applications. Type II anodizing is more suitable for decorative and mild protection purposes, while Type III anodizing offers enhanced durability, wear resistance, and corrosion protection, making it a preferred choice for demanding industrial and aerospace applications. Always consider the specific requirements of your project when choosing between these anodizing processes.
